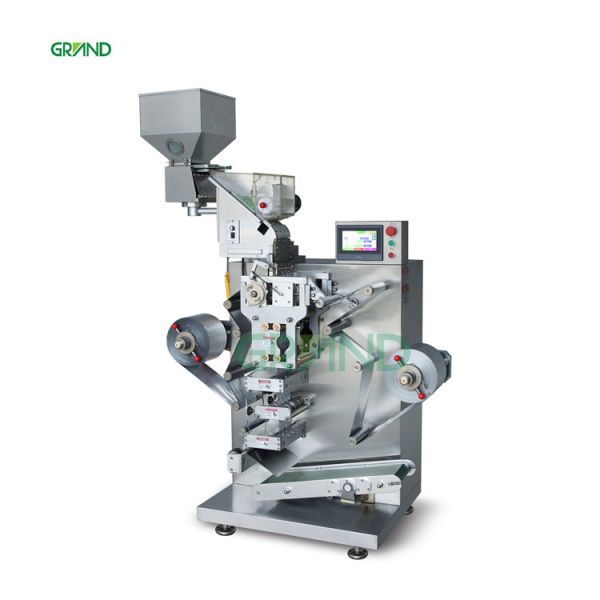

NSL-160B Automatic Capsule Strip Packing Machine
NSL-160B is a new generation of automatic double-aluminum strip
packing machine, the latest developed product of our company. This
machine is novel in design and advanced in structure. It adopts PLC
touch screen control system and has such advantages as high
efficient, low noise and easy operation. It’s equipped with
material feeding structure, which applies vibrating type for
arrangement, and equipped with photoelectric monitor device. This
machine can control feeding material automatically, set the cutting
plates optionally and finish the procedures of material conveying,
material charging, sealing, imaginary line, batch no, cutting and
counting automatically. In addition, it can run with high speed.

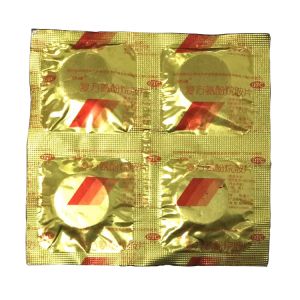

This machine is suitable for packing all kinds of tablets, capsules
with double-aluminum strip in pharmaceutical and health product
industries, and the similar tablet-shaped electronic components in
electron industry; with good sealing and light-tight effect, it
greatly prolongs the quality guarantee period of product, and the
finished products are easy to take.
|Product Name||Strip Packing Machine|
|Production Capacity||≤800 tablets, granules/min|
|Cutting Frequency||40-80 times/min|
|Compressed Air||0.45 MPa ≥0.2m3/min|
|Max Width of Packing Material||160mm|
|Diameter of Roll Material||300mm|
|Overall Dimension||1300*750*1700mm (L*W*H)|
|Packing Dimension||1500*1000*1900mm (L*W*H)|
Step 1: Packing Material Unwinding Step 2: Automatic Product
Feeding Step 3: Filling Station
Step 4: Sealing Station Step 5: Cutting Station Step 6: Final Products Output
1. The machine shell is welded by 304 stainless steel plate with
2mm thick, beautiful and practical.

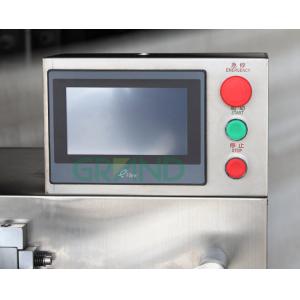

2. It adopts PLC control system with touch screen. The cutting
sections of medicine plate can be set and adjusted optionally on
the touch screen, which can perfectly avoid the problem of changing
all kinds of gears and cams for the change of packing specification
and medicine type.
3. It adopts imported temperature controller with PID to control
the temperature of sealing mould, and high-level PT100 roller
surface temperature-detector assembled by imported components to
measure the temperature. On one hand, it can ensure that the
surface temperature of sealing mould is absolutely stable and
reliable; on the other hand, it directly improves the seal effect
of medicine plate.
4. It adopts stepless frequency converter, running stably and
reliably, simple drive structure, convenient to maintain.
5. This machine can also be equipped with other optional functions
such as solid-ink roll coding, image marking, optical fiber
detection for material lacking, and waste rejection to meet various
needs of different customers.
Exhibition & Factory Plant
Providing photographer recording high precision video about
installing, debugging and changing mould for you before shipment,
cost paid by ourselves. The video helps you operate the machine
better, which not provided by other suppliers.
Different languages are available to be inputted in the touch
screen, such as Russian, Arabic, French, Spanish etc., in order to
help your machine operator understand and run machine smoothly.
We will dispatch engineers to your site for machine installation
and commissioning, and also do the training for your technicians.
12 (twelve) months guarantee time. During this Warranty period, we
will provide free spare parts that cause by the machine’s quality
within 10 days by fast courier upon receipt of buyer’s notice. We
will also provide one set of spare parts/wear & tear parts to
customer along with the shipment of the machine.
