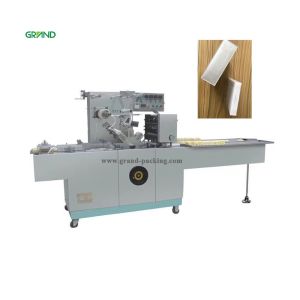

    Automatic Bopp Film Cellophane Wrapping Machine For Perfume Cigarette Box

    Ask Lasest Price
    Brand Name : Grand Packing
    Model Number : BTB-300A
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets per month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    Automatic Bopp Film Cellophane Wrapping Machine For Perfume Cigarette Box

    BTB-300A Automatic Bopp Film Cellophane Wrapping Machine for Perfume Cigarette Box


    Performance Characteristics:
    1. The machine integrated with electrical ,pneumatic, mechanical , working stable and reliable ,three cams design is the newest innovative and had patent and CE approved .
    2. Quality product with imported components ,such as Omron temperature controller ,NSK bearing. And all frame are made by SS 304.
    3. Uses inverter to control the speed, so could adjust according to the operation need.
    4. The mould change easy ,without dismantle drive chain ,hopper .save time greatly .
    5. New type double safeguard construction , won’t broke machine parts for any incident .
    6. One way hand wheel prevent from backward operation, and protect worker’s safety when the machine operates for still hand wheel .
    7. New type dual cutting knife replace traditional single knife, so could use for very long time.

    Application:

    BTB-300A is widely applicable to automatic film packaging various single boxed articles with a gold tear tape for easy opening, such as medicine, health-care products, foodstuff, cosmetics, stationery and audio-visual products.


    Main technical parameters

    Wrapping materialBOPP film and golden tear tape
    Wrapping speed40~80 bags/min
    Max. wrapping size(L)240×(W)120×(H)60mm
    Power220V 50Hz 5kw
    Weight500kg
    External dimension(L)2000×(W)700×(H)1400mm


    Technical comparison:

    ItemOther ManufacturersOur Machine
    Mold changeover timeNear one day30-60 minutes
    Film cutting knifeNeed to reshape only 1-2 monthsNeedless reshape more than 2 years
    KnifeSingle cutting knifeDouble rotary knife
    Knife rackSingle bar supportDouble bar support and could easy adjust by hand
    Film feedingDual air blowingFour air blowing


    Details show
    a. detail of hopper
    Automatic Bopp Film Cellophane Wrapping Machine For Perfume Cigarette Box
    auto bopp packing machine
    b. detail of mold
    Automatic Bopp Film Cellophane Wrapping Machine For Perfume Cigarette Box

    Sample show
    Automatic Bopp Film Cellophane Wrapping Machine For Perfume Cigarette Box

    Exhibition show
    Automatic Bopp Film Cellophane Wrapping Machine For Perfume Cigarette Box

    Workshop show
    Automatic Bopp Film Cellophane Wrapping Machine For Perfume Cigarette Box
